Honda XL-185S Piston Kit



Japanese made piston kit for Honda XL-185S

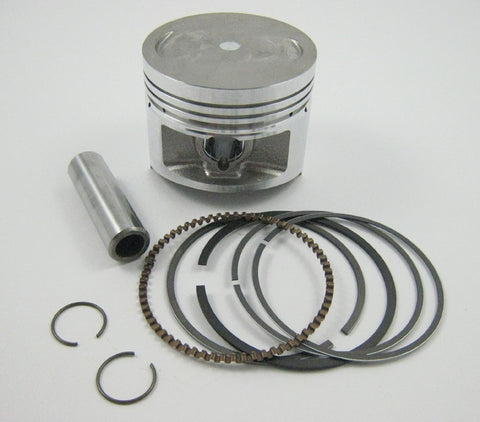

Kit includes Piston, Pin, Clips and Rings

OEM replacement for:



Standard Size:  13101-427-000

0.25mm Oversize:  13102-427-000

0.50mm Oversize:  13103-427-000

0.75mm Oversize:  13104-427-000

1.00mm Oversize:  13105-427-000

1.25mm Oversize:  13106-427-000

1.50mm Oversize:  13102-427-000



A: Bore 63.0mm (Standard Size)

B: Length 51.3mm

C: Pin Diameter 15mm

D: Compression Height 1.  25.30mm

F: Pin Size 15 x 49.5mm
